Vakaros Atlas 2

1149,00

“The Atlas 2 Vakaros is the ultimate intelligent navigation instrument that combines simplicity, precision and elegant aesthetics. Designed for both novice and experienced sailors, the Atlas 2 offers an unrivalled navigation experience with an exceptional battery life of over 100 hours.”

SKU: VK-ATLAS2 Categories: , Tags: , ,
Description

KEY FEATURES

Unprecedented 25 cm positional accuracy

Unlike traditional GPS devices that rely solely on the L1 band, the Atlas 2 is one of the first instruments to receive both L1 and L5 signals. While L1 delivers standard positioning accuracy, the addition of L5—the latest and most advanced GPS signal—greatly enhances precision and reliability, particularly in demanding sailing conditions.

Measure positional accuracy in centimeters, only on the Atlas 2.

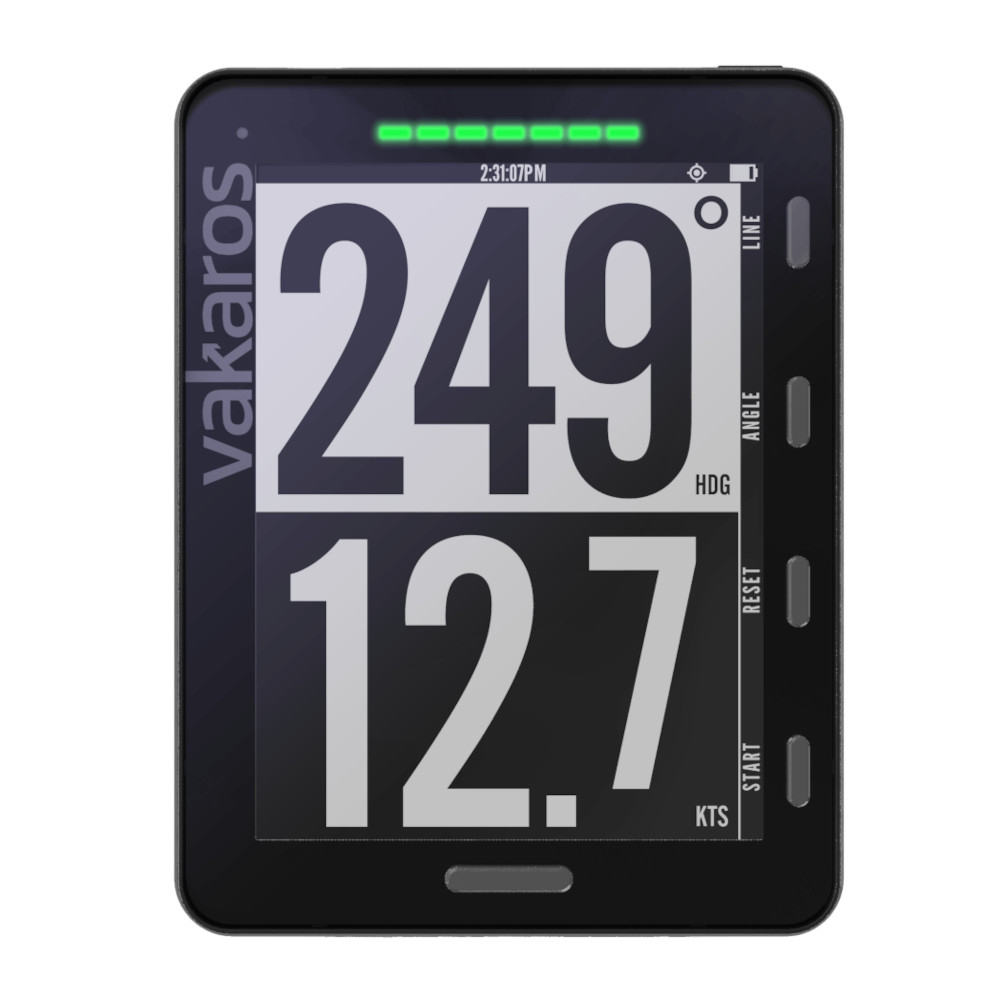

Unmatched 0.1° heading resolution

The Atlas 2 redefines compass performance with a next-generation magnetic sensor that is four times more sensitive, capable of detecting heading changes as small as 0.1°.

Enhanced by gyro stabilization and a high-speed motion fusion algorithm running at 50 Hz, the Atlas 2 delivers a consistently stable heading—even in the most demanding conditions.

100 hours of battery, rechargeable without wires

What’s better than wireless charging? Wireless charging paired with a battery that lasts over 100 hours—more than four days of continuous use. Whether you’re competing in a week-long regatta or tackling a distance race, the Atlas 2 is built to go the distance.

Its oversized lithium-ion polymer battery doesn’t just offer extended runtime—it’s intelligently managed to maximize charging cycles and ensure long-term performance. Because this is a device designed to perform for years, not just seasons.

Win the start. Own the fleet.

With cutting-edge sensors and advanced algorithms, you get precise, reliable data: distance and time-to-line.

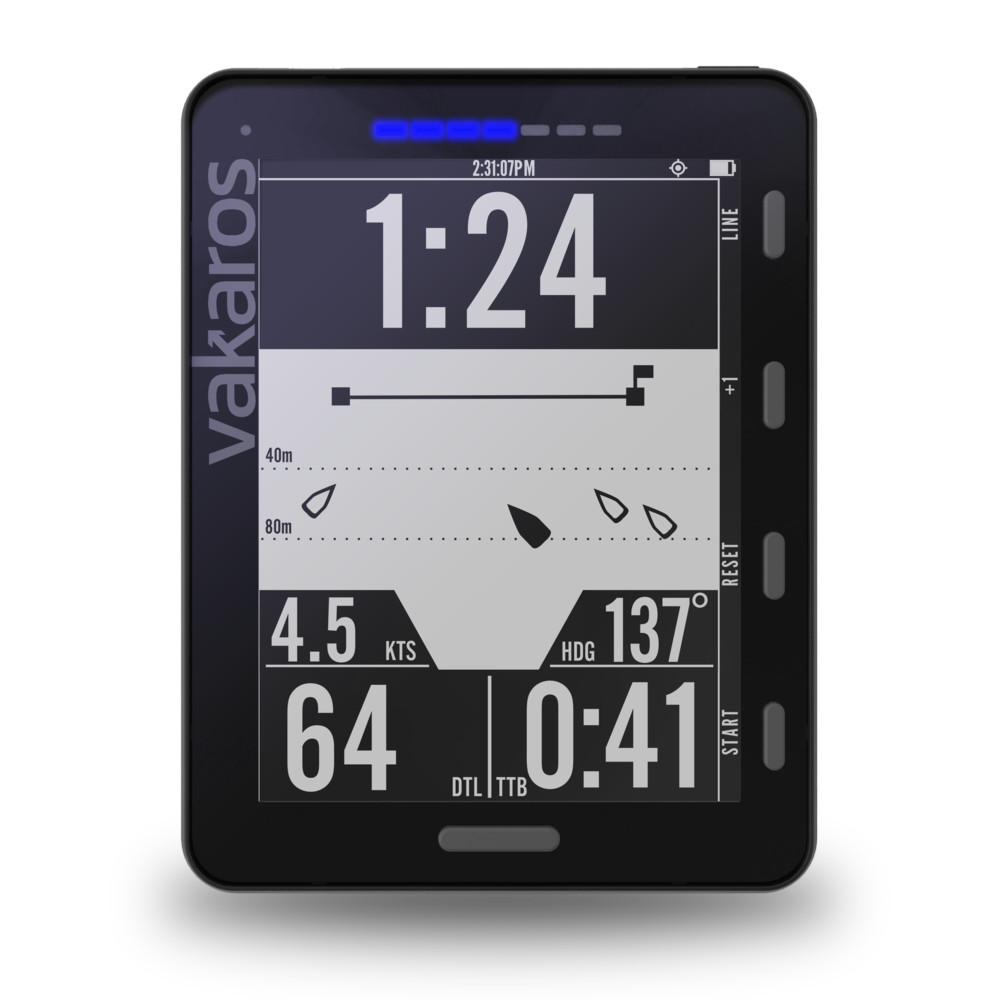

Our intuitive starting screens give you the situational awareness you need to hit the line on time and at full speed.

But don’t just take our word for it. Ask the top pros and World Champions who rely on Vakaros — they’ll tell you the same thing: Vakaros starts help them win.

NavLink Blue Vakaros Edition

By adding NavLink Blue Vakaros Edition, it allows the Atlas 2 to receive and display real-time data from the NMEA 2000 network, giving users immediate access to the navigation data from the NMEA 2000 network (wind, depth, speed, etc.).

With NavLink Blue Vakaros Edition, the Atlas 2 can interface with a broader range of sensors, including advanced wind sensors, centerline paddlewheels, and more.

SPECIFICATIONS

  • Atlas 2 is a high-performance portable sailing instrument
  • 25 Hz L1+L5 dual-band, multi-constellation GNSS receiver
  • 3-axis magnetometer
  • 3-axis gyroscope
  • 3-axis accelerometer
  • Data logging at 10 Hz
  • High contrast, sunlight-readable
  • 160 degree viewing cone
  • 4.4″ transflective LCD screen
  • 320×240 pixel resolution, 91 ppi
  • Run time: 100+ hours
  • Integrated 4600 mAh rechargeable lithium-ion battery
Sales FAQs

Is data from the Vakaros Atlas 2 sent to the NMEA 2000 bus?
−

Not yet. An update planned for spring 2026 will enable data from the Atlas 2 to be sent to the NMEA 2000 network, allowing full use of the Atlas 2’s high-precision sensors (compass, GPS, barometer, etc.).

Does the installation require technical skills?
−

No. Simply connect the NAVLink Blue to the NMEA 2000 backbone.

What is the Bluetooth range of the NAVLink Blue?
−

The range varies depending on the environment. In general, it is 10 to 15 metres. However, please note that steel or carbon fibre hulls can significantly attenuate the signal and require more careful installation.

Can Atlas 2 be used without NAVLink Blue?
−

Yes, but in this case Atlas 2 will only display its internal data (GPS, compass, inertial, etc.). NAVLink Blue is essential for exchanging information from the NMEA 2000 network.

How does the configuration work?
−

Configuration is immediate: the pack is compatible out of the box with the Vakaros Atlas 2 to start exchanging data.

Manual and Downloads

Atlas 2 Vakaros Product Manual

7.92 MB

NavLink Blue Product Manual V1.01

762.22 KB

NavLink Blue Latest User Manual V1.01

what inside box

  • Atlas 2 Vakaros
  • Mount
  • Qi Charging pad
  • Carrying case
  • Videos
