PC Nav System with Timezero Navigator & GPS160 USB

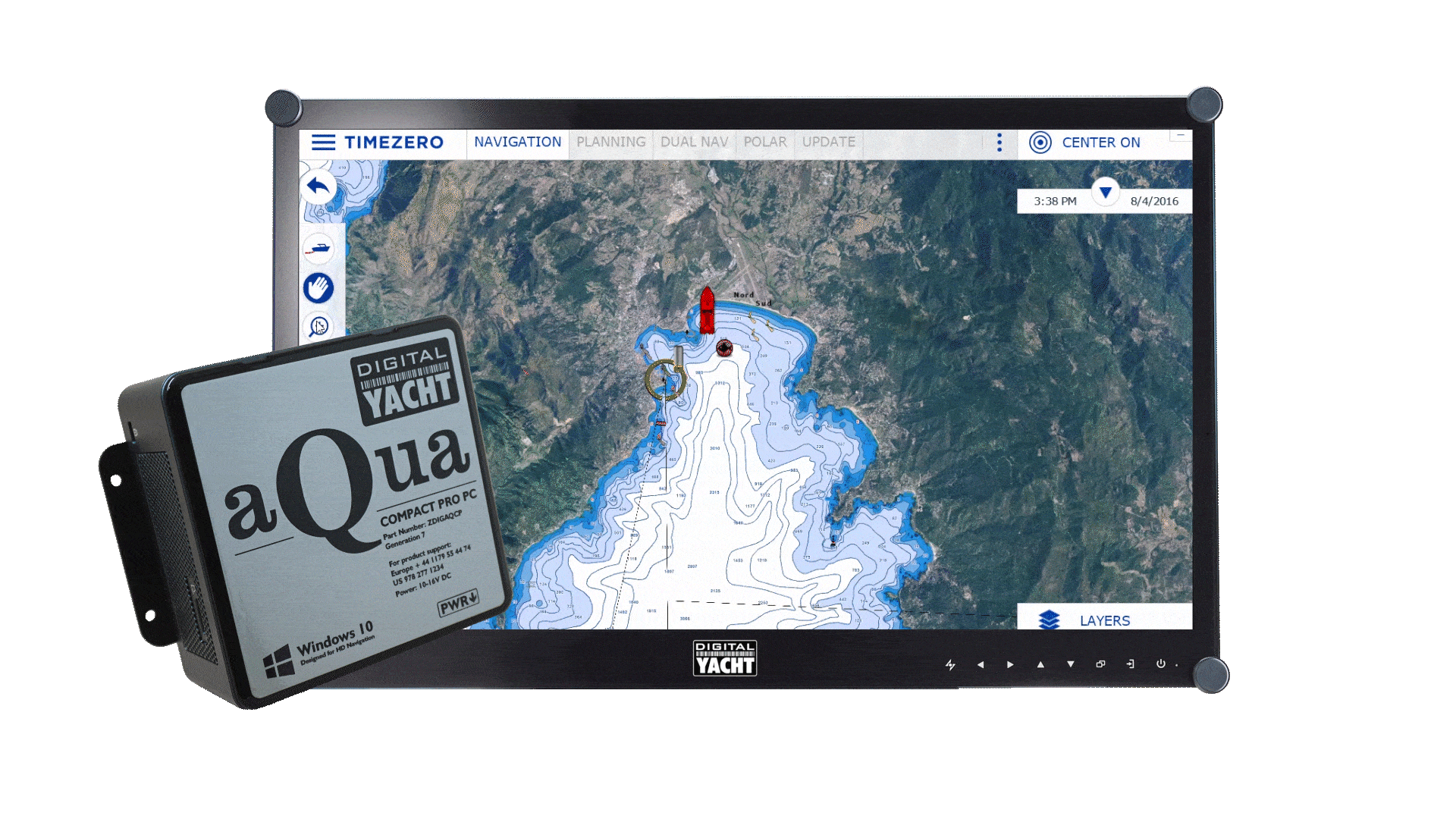

The latest Aqua Compact Pro PC brings affordable and reliable PC based navigation to boats. With low power, DC operation, it boasts the latest Intel processor – built in wifi and bluetooth and a solid state hard drive with 8GB RAM.

Despite its slim line 11.5 x 11 x 5 cm dimensions, the Aqua PC packs in a powerful Intel Core i3 processor with exceptional graphics performance for the latest 3D charting and HD navigation programs. It’s the perfect partner for applications like Maxsea TimeZero – even with radar and 3D overlays.

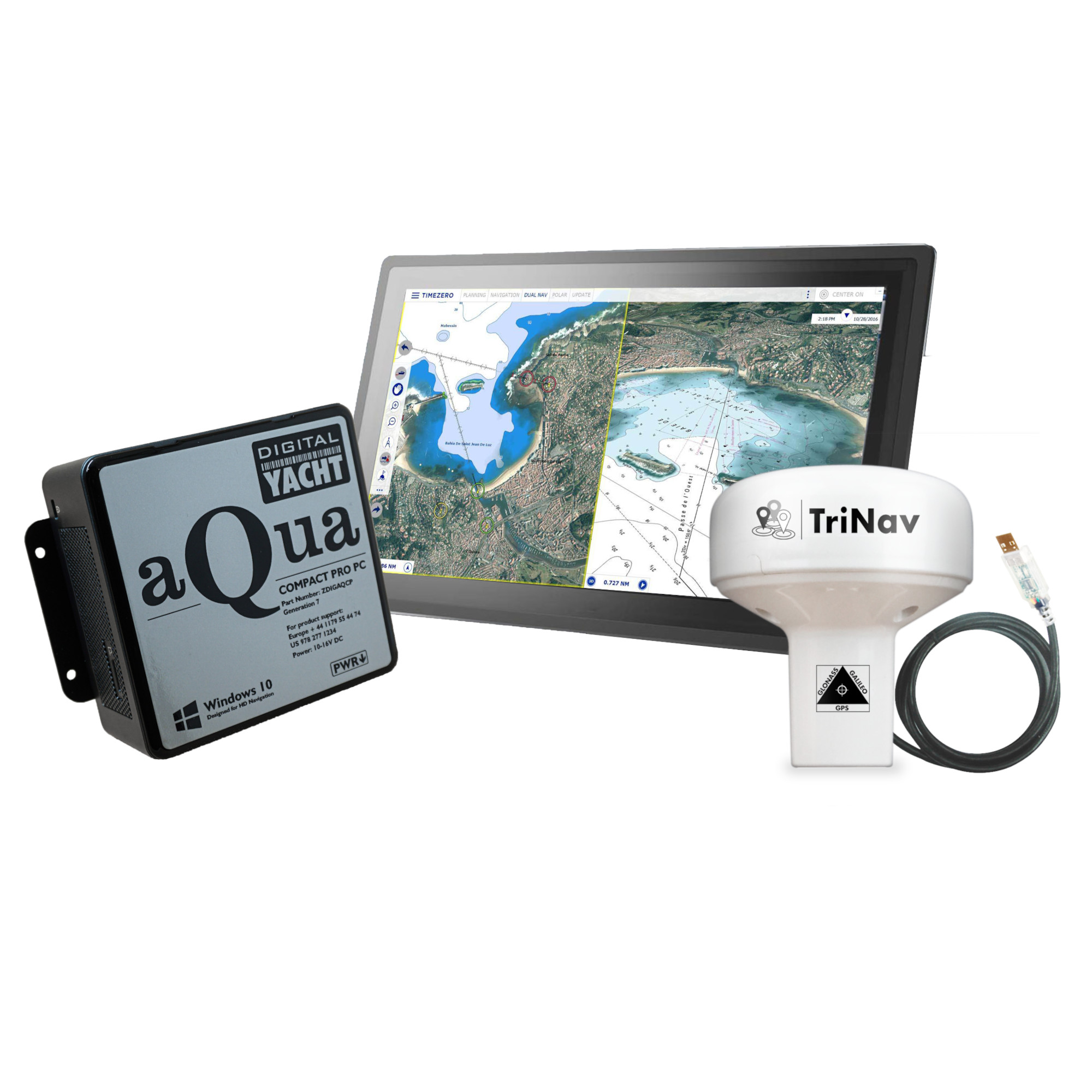

This package comes with either the S185 or the S124 .

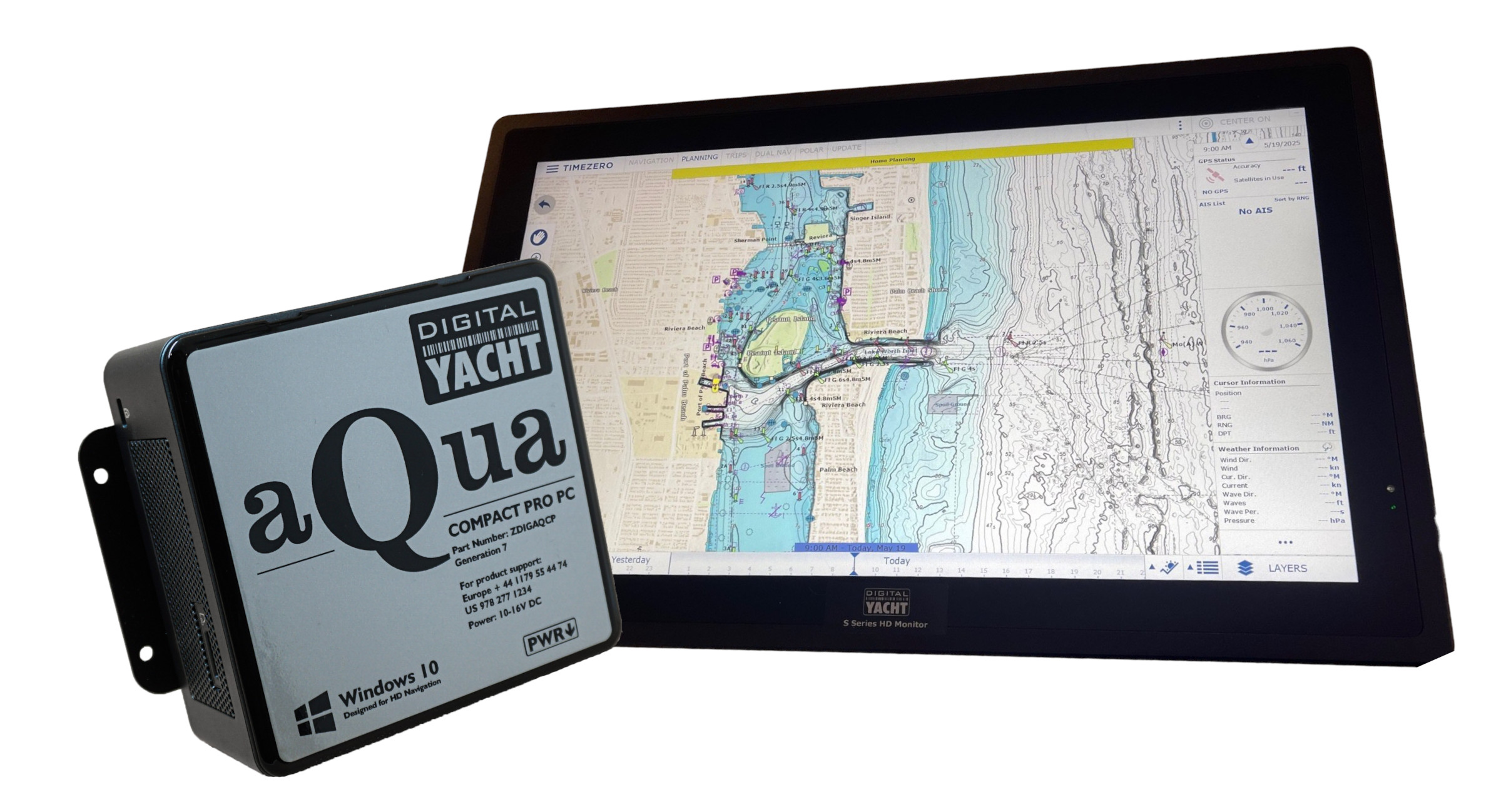

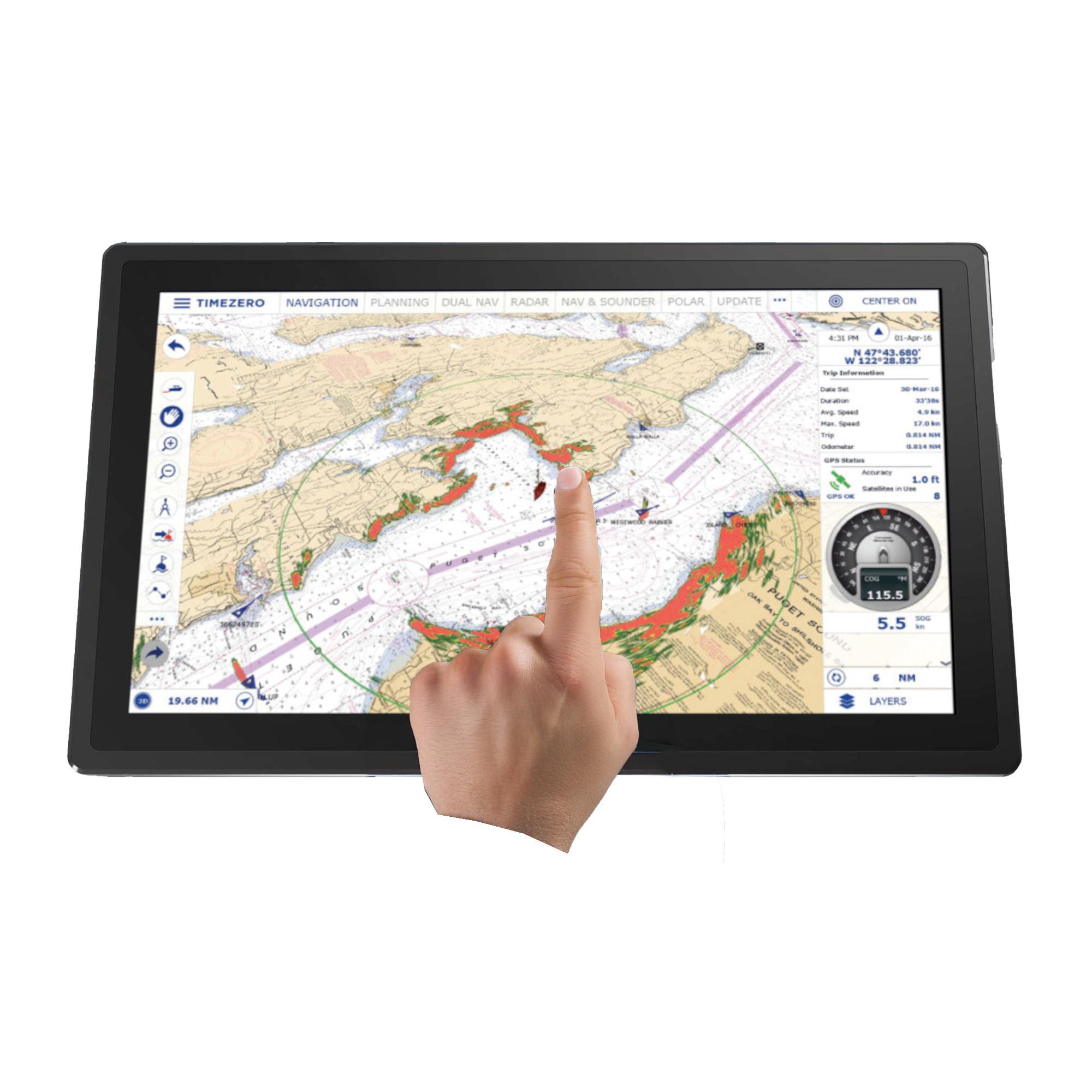

The S185 is a hi-brightness (1000 nits), great value daylight viewing LCD touch screen monitor. It’s large 18.5” screen supports 1920×1080 resolution. With a capacitive touchscreen, operation of Timezero Navigator software becomes easy with fast pinch in-out zooming and easing panning of charts.

The S124 is a 23.5” HD LCD marine monitor designed for below deck or internal dash mounting.  It features a 1920 x 1080 pixel display with 2M:1 contrast ratio for bright colour and vibrant displays. This display is not touchscreen.

TimeZero Navigator is a sophisticated PC charting software package with advanced navigation and AIS capabilities and a wide choice of charting formats.  Have the world at your fingertips thanks to the MapMedia charts catalog compatible with TZ Navigator. The introduction of TZ MAPS, a revolutionary nautical chart format, gives you access to all types of data available for your area: Raster, Vector, detailed land information, high-resolution satellite photos, and high-resolution Bathymetry.

In addition, TIMEZERO technology integrate an unparalleled chart engine where marine charts, 3D data, and satellite photos are intelligently combined through PhotoFusion.  Charts can be viewed at www.maxsea.com

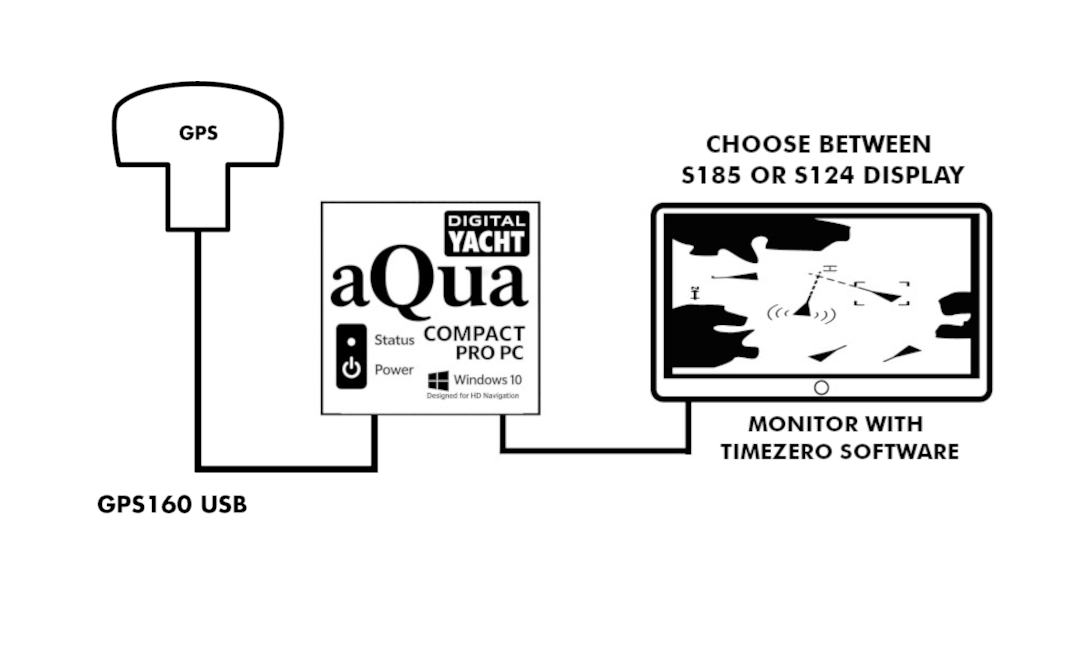

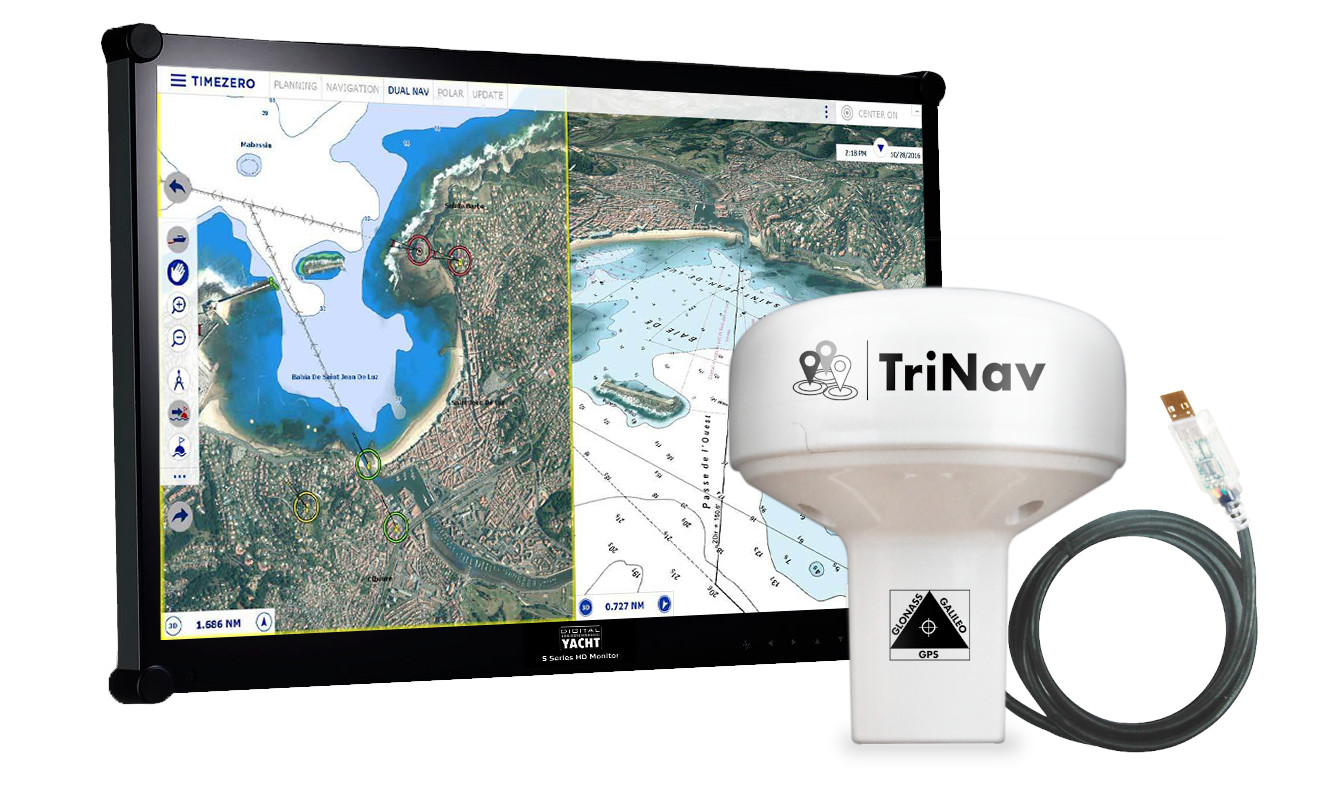

This package also includes the GPS160 USB to receive your GPS position on the software. It is a high performance positioning sensor using GPS, Glonass and the new Galileo satellite systems. Therefore, providing exceptional position accuracy and redundancy. Typical accuracy is better than 1m.  GPS160 USB has an integrated 5m USB cable. It powers itself from the USB source of the PC.

Add a NMEA to USB or NMEA to WiFi gateway to receive all your NMEA data on Timezero Navigator.  It also supports an autopilot.  Create marks, waypoints, routes, boundaries, lines, annotations & even add a photo as user objects.  Waypoints and routes can also be sync’d across the cloud and used in the TZ iBoat iOS app for an integrated tablet and PC solution. Full AIS display capability with CPA/TCPA alarms and target list. Download weather for an animated display layered onto chart with wind, temp, pressure and wave information.
